Access diagnostics mode on your S111 Belly Pack Lite

If the C220 receiver detects an error, you can access diagnostics mode on your remote device to diagnose the issue. It's important to keep the C220 powered on when an error happens. If you power of the C220, the error clears and you won't be able to diagnose it.

To access diagnostics mode:

  1. Put your device in configuration mode.

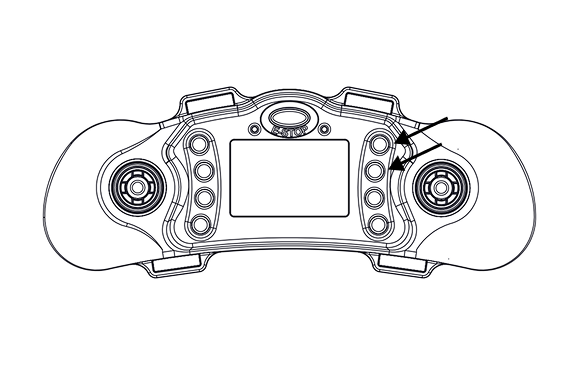

  2. When you're in configuration mode, press the top two right side buttons at the same time to enter diagnostics mode.updated s111 face callouts top right

In diagnostics mode, you can see the firmware version of the C220. If the remote shows No Link to Controller, the C220 may not be powered on or the remote hasn't been matched with the C220.
